Commodities · 03 / 04 · PCB assembly & box build · EMS

PCB assembly and box build,in Taiwan or the USA.

Surface-mount and through-hole assembly, test and full box build from vetted partner facilities in Taiwan✦ and the USA✦. Full turnkey or build to print; both are TAA-compliant routes.

Start an RFQ

Commodity 03 · PCB assembly and box build

Through its assembly partner network — electronics manufacturing partners in Taiwan✦ and the USA✦ — ProSource represents PCB assembly, test and box build from first prototypes through volume production, and manages your program from RFQ through ongoing supply.

CapabilitiesPartner certifications

Built in

Taiwan✦ · USA✦✦ Both are TAA-compliant routes. Full turnkey in Taiwan; build to print in the USA.

PCB assembly

SMT to 01005, plus through-hole · Fine pitch to 0.4 mm · Selective soldering · BGA rework · Conformal coating · Potting

Inspection and test

Solder-paste inspection and AOI · 3D X-ray · Flying probe · Programming and functional test · Burn-in · Leak test · Reliability test on request

Box build

Final assembly and system integration · Cable and harness assembly · Plastic injection · Ultrasonic welding · Laser engraving · Packaging and kitting

Engineering

DFM and tooling review · DFMEA and PFMEA · PCB layout · BOM review and alternate parts · Prototyping

For

Pro AV · Medical · Defense · Aerospace · Automotive · Telecom / RF · Industrial

Capabilities · 01 / 03

PCB assembly

Surface mount to 01005,inspected in 3D.

Surface-mount assembly to 0201 on the Taiwan route, and to 01005 with fine pitch to 0.4 mm on the USA route, plus through-hole. On the USA route, solder paste is inspected in 3D before reflow and by AOI after it.

01005Smallest chipUSA route · 0201 on the Taiwan route
3DX-ray inspectionBGA, QFN and hidden joints · both routes
TestProgramming and testFlying probe (Taiwan) · functional · burn-in (USA)

SMT · Through-hole · 0201 / 01005 · Fine pitch 0.4 mm · Nitrogen reflow
3D SPI · AOI · 3D X-ray · Flying probe · Programming · BGA rework

Start an RFQBox build

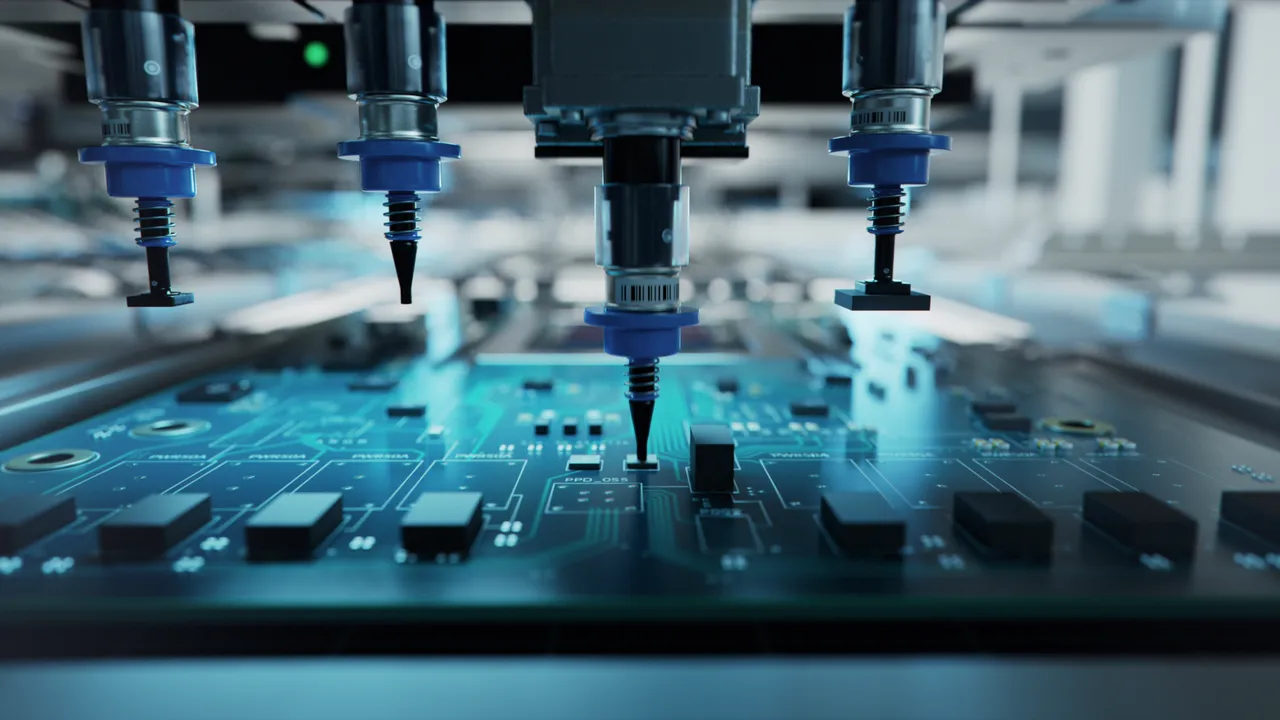

Pick-and-place nozzles above a populated circuit board on an assembly line

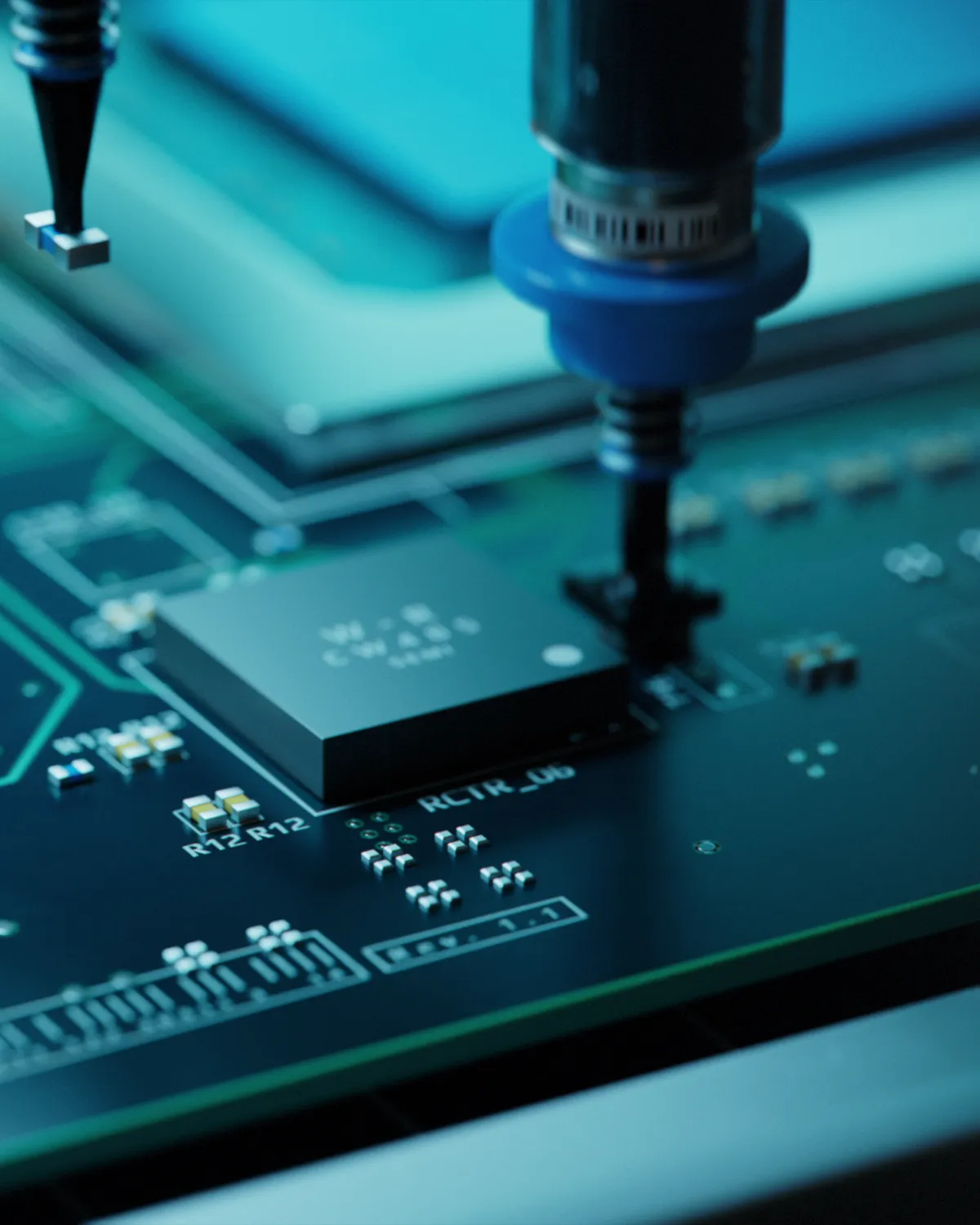

A placement nozzle setting a component onto a circuit board, close up

Capabilities · 02 / 03

Box build

From bare boardto boxed product.

Full box build on both routes, with system integration on the USA route. On the Taiwan route, plastic injection and tooling review for the enclosure sit inside the same program.

BoxFull box buildBoth routes · system integration on the USA route
25–75µm coating thicknessAutomated selective conformal coating · USA route
SealSealed housingsUltrasonic welding and leak test (Taiwan) · potting (both)

Box build · System integration · Cable and harness · Conformal coating · Potting
Laser engraving · Ultrasonic welding · Leak test · Packaging and kitting

Start an RFQEngineering

Capabilities · 03 / 03

Engineering

DFM, layout and prototypes,before production.

On the Taiwan route, PCB layout, tooling review, prototyping and a BOM review with alternate-part suggestions are part of the same turnkey program, with reliability testing on request.

DFMEvery RFQReviewed before the quote is final
LayoutPCB layout serviceWith tooling review · Taiwan route
NPIDedicated prototype linePrototype through mid-volume · USA route

RFQ → DFM → prototype → production → ongoing supply

Start an RFQTaiwan or the USA

Two routes · Both TAA-compliant

Taiwan or the USA.

Tell us the requirement with your RFQ and it goes to the facility that fits.

Route 01 · Full turnkey

Taiwan✦

One turnkey program from design review to boxed product, at an FDA-registered establishment.

Scope
DFM and tooling review · PCB layout · Prototyping · Plastic injection · PCB assembly · Box build
Assembly
SMT to 0201, plus through-hole · 3D X-ray · Flying probe · Programming and test · BGA rework
Volume
Quick-turn prototypes through mid-volume production
Controls
MES-tracked production · X-ray fluorescence material screening · Temperature and humidity testing · Reliability test on request
Experience
Medical devices · Automotive · RF and wireless modules · Aerospace RF · Pro audio · Semiconductor test · Energy storage

Route 02 · Build to print

USA✦

US-made assemblies from your released design, from the first prototype through mid-volume.

Scope
PCB assembly · Box build and system integration · Cable and wire harness · Conformal coating · Potting
Assembly
SMT to 01005, fine pitch to 0.4 mm · Nitrogen reflow · 3D solder-paste inspection, AOI and 3D X-ray · Selective soldering · BGA rework
Volume
Prototype through mid-volume · A dedicated prototype line · Small consigned batches accepted
Controls
IPC-A-610 and J-STD-001 certified operators · ESD-controlled facility · Barcode traceability at line level · Burn-in
Experience
Medical · Aerospace · Defense · Industrial instrumentation · Advanced R&D

Quality and compliance

Partner certifications and compliance.

Held by our assembly partners; each cell names the route that holds it. Tell us which ones your program needs when you start your RFQ.

  • ISO 13485Medical devicesTaiwan✦ · USA✦
  • AS9100DAerospaceUSA✦
  • IATF 16949AutomotiveTaiwan✦
  • FDARegistered establishmentTaiwan✦
  • 21 CFR 820FDA quality system (QMSR)Compliant · USA✦
  • ISO 9001Quality systemsTaiwan✦ · USA✦
  • ISO 14001Environmental systemsTaiwan✦
  • ISO 45001Health and safety systemsTaiwan✦
  • QC 080000IECQ hazardous substancesTaiwan✦
  • RoHSRestricted substancesTaiwan✦ · USA✦
  • REACHEU chemical safetyUSA✦
  • TAA✦Trade Agreements ActBoth routes compliant: Taiwan and the USA

Four steps · One point of contact

How an RFQ works here.

  1. Start with a conversation

    Tell us about the product: quantities, the certifications you need, and where it must be built. No files are needed to begin.

  2. NDA review

    An NDA is in place before any drawings or design data change hands.

  3. Review and quote

    Once your files are with us, the right facility reviews the design for manufacturability and returns a quote: Taiwan, the USA, or both. Either way it is a TAA-compliant route.

  4. Prototypes, then production

    First articles for your approval, then production and ongoing supply.

Start an assembly program

Pro Source Inc · California

Taiwan, the USA,or both?

Tell us what the product is and where it has to be built, and we will tell you which route fits and who will manage it.
